The Unofficial Manual
Introduction: The Unofficial Manual You've Been Searching For
This is the complete (unofficial) user manual for the Nugz Ninja Incognito 510 Vape Battery, the stealth battery that hides your cartridge inside its body. Nugz doesn't include instructions in the box, so we documented every button code, voltage setting, pre-heat trick, puff counter reset, and troubleshooting fix in one place. Start with the cheat sheet below, or jump straight to the troubleshooting guide if your device is flashing.
Quick Reference
Nugz Ninja Incognito Instructions: Quick Button Code Cheat Sheet
Every control on the Nugz Ninja Incognito runs through one button:
Section 01 · Hardware
Unboxing and Technical Specifications: Anatomy of Your Ninja
Understanding the components and technical capabilities of your Nugz Ninja Incognito is the first step toward mastering its use. This section details what to expect upon opening the package and provides a consolidated list of the device's specifications.

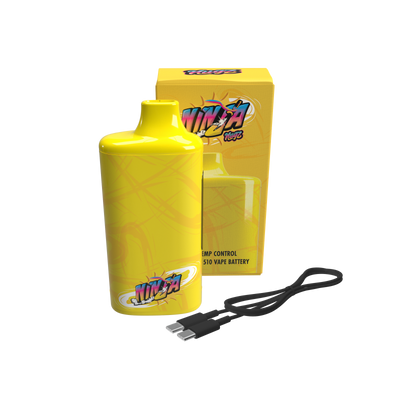

What's in the Box
While packaging may vary slightly by retailer, a new Nugz Ninja Incognito package typically contains the following essential items:
- The Nugz Ninja Incognito 510 Vape Battery device.
- A USB-C charging cable.
It is important to note that a 510-thread cannabis cartridge is not included with the battery. This must be purchased separately from a licensed cannabis retailer.

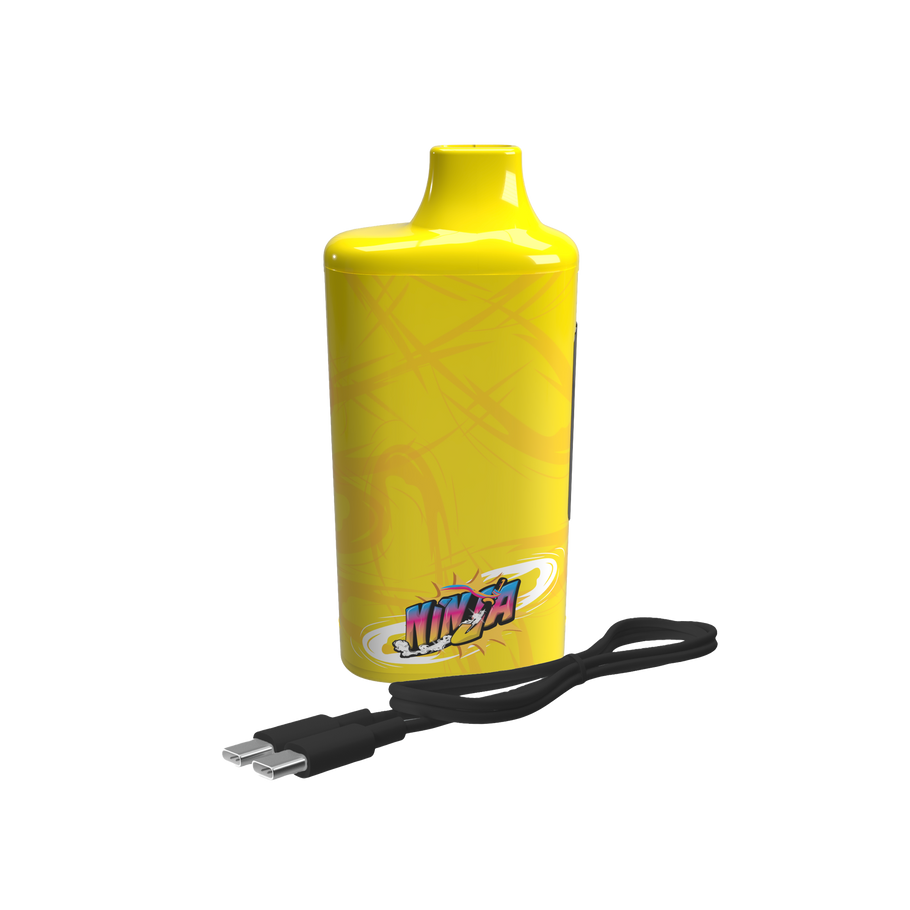

Device Anatomy
The Ninja Incognito's design is both functional and discreet. Familiarizing yourself with its physical layout is key to its operation.
The device features a compact, rectangular chassis designed to fit comfortably in a pocket or clutch. It is most commonly available in a vibrant yellow color, giving it a distinct and modern look.

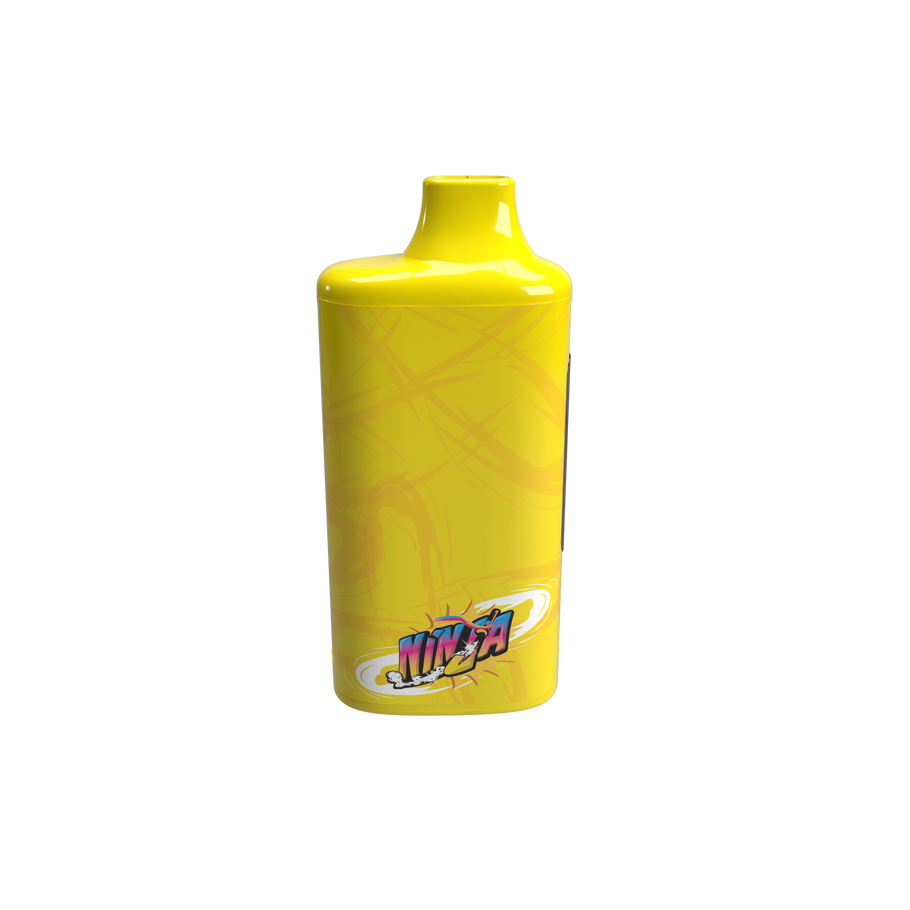

The device's signature feature is its internal compartment that fully conceals the 510 cartridge. This design not only provides exceptional discretion but also protects the fragile glass or ceramic cartridge from damage during transport. A significant advantage of this design is its ability to house larger cartridges, including those up to 2g in capacity.
A small but clear Organic Light Emitting Diode (OLED) screen is integrated into the device's body. This screen is a central component of the user experience, displaying vital information such as the current voltage setting, remaining battery life, and the puff counter.
The device is operated via a primary power/fire button. Depending on the specific manufacturing run, it may also feature dedicated buttons for adjusting voltage up or down, though most functions are controlled through specific click patterns of the main button. See the cheat sheet above for every code.
Inside the stealth compartment is the industry-standard 510 thread connection point. A notable design choice is the absence of a magnetic adapter, which is common on many other concealed batteries. Instead, users screw their cartridge directly into the device, creating a more secure and reliable electrical connection.
The device is equipped with a modern USB-C port for recharging, allowing for faster and more convenient charging compared to the older micro-USB standard.
Core Specifications Table
Product specifications for the Nugz Ninja Incognito are scattered across numerous retailer websites. The table below synthesizes this fragmented data into a single, comprehensive technical datasheet, creating the most complete reference available for this device.
| Feature | Specification |
|---|---|
| Product Name | NUGZ Ninja Incognito 510 Vape Battery |
| Brand | Nugz (Cannara Biotech Inc.) |
| Compatibility | Standard 510 Thread Cartridges |
| Max Cartridge Size | Fits up to 2g cartridges |
| Voltage Range | 1.8V - 4.2V (Variable) |
| Display | OLED Screen |
| Key Functions | Pre-Heat Mode (10-second) Puff Counter |
| Charging Port | USB-C |
| Adapter Required | No |
| Color | Vibrant Yellow |
Section 02 · Setup
How to Use the Nugz Ninja Incognito: 5-Minute Quick Start Guide
For those eager to begin using their device immediately, this section provides a straightforward, step-by-step guide to get you up and running in minutes.
Charge It Up: Before its first use, connect the Nugz Ninja Incognito to a power source using the included USB-C cable. Allow the device to charge fully. The OLED screen displays a battery icon to indicate its charging status.
Install Your Cartridge: Take your 510-thread cartridge and gently screw it clockwise into the connection point located inside the device's stealth compartment. The connection should be snug but not overly tight. Over-tightening can damage both the cartridge and the battery connection.
Power On: To turn the device on, press the main power button 5 times in quick succession. This is a standard safety feature to prevent accidental activation. The OLED screen will light up, indicating the device is active and ready for use.
Take Your First Puff: Press and hold the main power button while gently inhaling from the mouthpiece of your cartridge. A slow, steady draw of 1-2 seconds is recommended for the best flavor and vapor production.
Power Off: When you are finished using the device, press the power button 5 times again in quick succession to turn it off. This conserves battery life and ensures the device cannot be accidentally activated.
Section 03 · Controls
Mastering Your Device: A Detailed Operational Guide
To move beyond basic operation and take full advantage of the Nugz Ninja Incognito's advanced features, a deeper understanding of each function is necessary. This section provides a comprehensive exploration of the device's settings and controls.
Charging the Battery
The device's internal lithium-ion battery is charged via the USB-C port using a standard USB-C cable and a basic 5V/1A adapter. When connected to a power source, the OLED screen displays a charging animation, typically a filling battery icon. For optimal long-term battery health, follow standard lithium-ion battery care practices: avoid leaving the device plugged in for extended periods after it has reached a full charge (e.g., overnight) and recharge it before the battery is completely depleted. Avoid high-wattage fast chargers. See Nugz Vape Not Charging below for why.
Powering On and Off
The standard 5-click sequence for powering the device on and off is a critical safety feature. It is designed to prevent the atomizer from firing accidentally while the device is in a pocket, bag, or purse, which could otherwise burn the oil in the cartridge and pose a safety risk. Always ensure the device is powered off when not in use.
Navigating the OLED Screen
The OLED screen is your central information hub. It provides real-time data on the device's status, allowing for precise control over your experience. The information displayed includes:
- Voltage Setting: This number (e.g., "3.2V") indicates the current power output being sent to the cartridge.
- Battery Life Indicator: A graphical icon, often resembling a battery, that shows the remaining charge level.
- Puff Counter: A numerical display that tracks the number of inhalations taken since it was last reset.
- Status Indicators: The screen also displays symbols or text to indicate when the device is pre-heating, charging, or if an error has occurred.
Tailoring Your Experience: Adjusting the Voltage
The ability to adjust the voltage is the most powerful feature of the Ninja Incognito, allowing you to customize the balance between flavor and vapor production. The device offers a wide range from 1.8V to 4.2V.
How to Adjust Voltage: Tap the main power button 4 times rapidly to unlock the controls, then press the power button 3 times rapidly to cycle through the voltage levels. If your unit has dedicated +/- buttons, use those after unlocking instead. If the setting still won't change, the control lock is engaged. Repeat the 4 rapid taps to toggle it off, then try again.
Why Adjust Voltage: Different cannabis oils vaporize best at different temperatures, which are controlled by the voltage setting.
This range is ideal for flavor connoisseurs. It heats the oil gently, preserving the delicate terpene profiles found in high-quality extracts like live resin and cured resin. Vapor production will be lighter and smoother. This is the recommended starting point for any new cartridge to gauge its flavor.
This is the sweet spot for most users and cartridge types, especially those containing standard cannabis distillate. It provides a robust balance of rich flavor and satisfying vapor production.
This range is for maximizing vapor production. It heats the oil very quickly, creating large, dense clouds. However, this intensity can degrade or destroy delicate terpenes, leading to a flatter, sometimes harsh flavor. It can also increase the risk of burning the cartridge's wick if used with thin oils or if puffs are taken too close together.
A particularly relevant application of this feature is with Nugz's own line of Cured Resin vape cartridges. Cured resin is known for its complex and authentic flavor profiles, which are best experienced at lower voltage settings. The Ninja Incognito is therefore perfectly equipped to provide an optimal experience with its own brand's cartridges. Browse compatible 510-thread cartridges and batteries here.
Using the Pre-Heat Function
The pre-heat function is an essential tool for ensuring a smooth and consistent vaping experience, especially with thick oils or in colder environments.
How to Activate Pre-Heat: Press the power button 2 times in quick succession to begin the 10-second pre-heat cycle. The OLED screen displays a countdown while the device supplies a gentle stream of low heat. To cancel the pre-heat cycle before it completes, press the power button one more time.
Why Use Pre-Heat: Many high-quality cannabis extracts, such as live resin, cured resin, and honey oil, are highly viscous. When cold, this thick consistency can prevent the oil from properly soaking into the cartridge's wick, leading to clogs or weak hits. The pre-heat function applies a low, gentle heat to the cartridge, warming the oil and reducing its viscosity. This allows it to flow freely, priming the wick and clearing any minor obstructions in the airway. It is the single most effective method for preventing and fixing a clogged cartridge.
The Puff Counter: Tracking and Resetting (The Undocumented Feature)
One of the most sought-after pieces of information for this device is how to reset the puff counter. This function is entirely undocumented by the manufacturer, but the sequence works reliably once you nail the timing.
How to Reset the Puff Counter:
Unlock the Controls: Tap the main power button 4 times in rapid succession. This unlocks the device's advanced functions.
Initiate Reset: Immediately after unlocking, tap the main power button 10 times in rapid succession.
The puff counter on the OLED screen resets to "0000". The clicks must be rapid and distinct. If the reset doesn't take, repeat the full sequence from the 4-tap unlock. The 4-tap sequence is the gatekeeper for all advanced settings on this device, including voltage adjustment. Button combinations from generic vaping forums, such as "3 clicks and hold" or "2 clicks plus the minus button," do not apply to this device and will not work.
Section 04 · Fixes
Comprehensive Troubleshooting Guide: Solving Common Problems
Most vaping issues trace back to one of three areas: the battery (power supply), the cartridge (oil and atomizer), or the connection point between the two. Start with the flashing-light codes below; they tell you exactly which one is the problem.
Nugz Vape Not Working? Flashing Lights & Error Codes
When your Nugz Ninja flashes instead of firing, the chip is reporting a specific fault. Count the flashes:
3× Flashing 3 Times: Short Circuit / Connection Error
Unscrew the cartridge and clean the 510 threads and center pin with a Q-tip dipped in 90%+ isopropyl alcohol. Reinstall finger-snug only. Over-tightening pushes the center pin's contacts together and triggers the short-circuit error.
5× Flashing 5 Times: 10-Second Auto Cut-Off
This is a safety feature triggered by holding the fire button longer than 10 seconds. It protects your oil and coil from overheating. Release the button, wait a couple of seconds, and take shorter, gentler draws.
10× Flashing 10 Times: Low Voltage / Dead Battery
The battery is dead. Connect a standard 5V/1A USB-C charger for 30–60 minutes. Avoid ultra-fast phone chargers. High-output bricks trip the battery's internal protection circuit, which then refuses to charge the cell.
RED Flashing Red: Low Battery Warning
On 510 batteries, a blinking red light signals low battery, typically under 20-30% charge. Confirm with the battery icon on the OLED screen, then recharge with a standard USB-C cable and a basic 5V/1A adapter.
Nugz Vape Not Firing / No Vapor
If the screen is lit but you get zero vapor, work through these two fixes in order:
1. Pre-heat thick oil (2 clicks). Cold live resin, cured resin, and other high-viscosity extracts settle at the base of the tank and block the coil's intake holes. Press the power button 2 times rapidly to start the 10-second pre-heat cycle. The OLED shows a countdown while low heat softens the oil. When the cycle finishes, take a soft, steady pull. The loosened oil wicks into the ceramic element and clears cold-start blockages without scorching the terpenes. This is the most effective first step on this device.
2. Unlock the controls (4 clicks). If the device refuses to fire when you hold the button, or the voltage won't adjust, the control lock is engaged. Tap the power button 4 times rapidly to toggle it off, then fire again. This lock is separate from the 5-click power switch; it exists to keep your heat settings from changing in your pocket.
If neither works, the problem is the connection or the cartridge itself. See the reference table below.
Nugz Vape Not Charging
If the device shows no charging animation when plugged in, run through these in order:
Ditch the fast charger. This is the most common cause. High-wattage Power Delivery bricks and fast phone chargers trip the battery's protection circuit, and the device refuses the charge. Use a basic 5V/1A wall adapter or a computer USB port.
Give a dead-flat battery time. A fully depleted cell can take several minutes on the charger before the screen wakes up. Leave it connected for 30–60 minutes before judging.
Clean the USB-C port. Pocket lint and oil residue block the contacts. Power off and clear the port gently with a dry toothpick or a barely-damp alcohol swab, then let it dry completely.
Swap the cable. Charging cables fail constantly. Test with a known-good cable; a replacement USB-C cable is a cheap fix before assuming the battery is dead.
If none of this works, the battery has likely failed. We cover this device with a 30-day warranty. Reach out and we'll sort out an exchange.
Quick-Reference Troubleshooting Table
| Problem | Likely Cause(s) | Solution(s) |
|---|---|---|
| Device Won't Turn On | 1. Battery is completely depleted. 2. Device is in a locked state. 3. The 510 connection plate is dirty or depressed. |
1. Connect the device to a known-good USB-C charger and wall adapter for at least 30-60 minutes. 2. Press the power button 5 times rapidly to ensure it is turned on. 3. Power off the device. Gently clean the circular metal connection plate on the battery with a cotton swab lightly dampened with isopropyl alcohol. Ensure it is dry before reattaching a cartridge. |
| Weak or No Vapor ("Not Hitting") | Clogged oil, low voltage, or an engaged control lock. | See Nugz Vape Not Firing / No Vapor above: 2 clicks to pre-heat, 4 clicks to unlock. |
| Burnt or Harsh Taste |
1. The voltage is set too high, burning the oil. 2. The wick is not fully saturated (often from taking many puffs in rapid succession, or "chain-vaping"). 3. The cartridge is nearly empty. |
1. Immediately lower the voltage setting. A burnt taste is a clear sign the power is too high for the oil or wick. 2. Pause for at least 30-60 seconds between inhalations to give the oil time to re-saturate the heating coil. 3. Visually inspect the cartridge to see if the oil level is low. |
| Cartridge is Clogged |
1. The oil has thickened due to cold temperatures. 2. Condensation and oil residue have built up in the mouthpiece airway. |
1. Activate the Pre-Heat function (2 rapid clicks). This is its primary purpose and should be your first action. 2. If pre-heating is insufficient, gently warm the entire cartridge by holding it in your hands for a few minutes or using a hairdryer on its lowest heat setting from a safe distance. 3. For stubborn clogs, power off the device, remove the cartridge, and carefully insert a toothpick or an unbent paperclip into the mouthpiece to clear the obstruction. |
| OLED Screen is Off but Device Fires |
1. The screen is locked or asleep. 2. The screen has malfunctioned. |
1. Tap the power button 4 times rapidly (the control lock toggle) to wake the screen. 2. If the device fires but the screen stays dark, the screen is damaged. Contact us within the 30-day warranty period for an exchange. |
| Puff Counter Won't Reset | 1. The button sequence is being performed incorrectly or with improper timing. | 1. Follow the two-step sequence exactly: tap the power button 4 times to unlock, then immediately tap it 10 more times to reset. The clicks must be rapid and distinct. |
| Cannot Change Voltage | The control lock is engaged. | Tap the power button 4 times rapidly to unlock, then 3 rapid clicks (or the +/- buttons) to adjust. Full steps in Adjusting the Voltage. |
Section 05 · Care
Pro-Tips, Maintenance, and Long-Term Care
Proper care and advanced usage techniques will not only improve your day-to-day experience but also significantly extend the functional lifespan of your Nugz Ninja Incognito.
Pro-Tips for an Optimal Experience
Go beyond the basics. For Nugz's own Cured Resin cartridges, start at a very low voltage (e.g., 2.0V - 2.4V) to savor the full spectrum of terpenes. For thicker distillates or live resins, a medium range (2.8V - 3.4V) is often ideal. Reserve the highest settings for when vapor production is your only priority.
The best flavor and performance come from proper inhalation technique. Instead of taking hard, fast pulls, which can flood the atomizer or pull oil through the mouthpiece, take slow, gentle draws lasting 1-3 seconds. This allows the oil to vaporize efficiently and delivers a smoother, more flavorful experience.
The "incognito" nature of the device is its greatest strength. The concealed cartridge means it doesn't immediately look like a vape pen. Keep the device powered off when carrying it to prevent any accidental activation and odor release.
Essential Maintenance
Regular, simple maintenance is the key to consistent performance.
Over time, a small amount of oil residue accumulates on the 510 connection pin in the battery. This interferes with the electrical connection, leading to weak hits, the 3-flash error, or charging issues. Once a week, or whenever you change cartridges, power off the device and clean the metal contact pin and surrounding threads with a cotton swab lightly dipped in isopropyl alcohol. Evolve Cleaning Cotton Swabs are sized for exactly this job. Allow it to air dry completely before use.
Check the inside of the cartridge compartment for any minor leaks from your cartridges. Wipe the interior with a dry cloth or a lightly alcohol-dampened swab. For sticky, baked-on residue, a dab of Ooze Resolution Gel on a swab dissolves buildup without scratching the compartment.
Proper Storage
How you store your device can directly impact its longevity and performance.
Whenever possible, store the device in an upright position. This uses gravity to keep the oil at the bottom of the cartridge, ensuring the wick stays saturated and helping to prevent leaks through the mouthpiece or threads.
Like all electronics, the Ninja Incognito should be stored in a cool, dry place away from direct sunlight or extreme temperatures. High heat can damage the battery and degrade the quality of the oil in the cartridge, while extreme cold can thicken the oil and make it difficult to vaporize.
Section 06 · FAQ
Frequently Asked Questions (FAQ)
This section addresses some of the most common questions users have about the Nugz Ninja Incognito.
Why is my Nugz Ninja flashing 3 times?
Three flashes means a short circuit or connection error between the battery and cartridge. Unscrew the cartridge, clean the 510 threads and center pin with isopropyl alcohol on a Q-tip, and reinstall finger-snug; never force-tighten. Full steps in the flashing lights guide above.
Why won't my Nugz vape charge?
The most common cause is a fast charger: high-output phone chargers trip the battery's protection circuit, and it refuses the charge. Use a basic 5V/1A adapter, clean the USB-C port, leave a dead battery plugged in for 30–60 minutes, and test a known-good cable before assuming the worst.
Who makes the Nugz Ninja Incognito?
The device is produced under the brand name Nugz. Nugz is a subsidiary brand of Cannara Biotech Inc., a publicly traded cannabis company based in Quebec, Canada.
What is a 510-thread battery?
"510-thread" refers to the type of screw-on connection used for most cannabis vape cartridges and batteries. It is the universal standard in the industry, meaning a 510-thread battery (sometimes called a cart battery) like the Ninja Incognito is compatible with the vast majority of cartridges available on the market.
Will any 510 cartridge work with this device?
Yes, the Ninja Incognito is designed to be compatible with any standard 510-thread cartridge. Its stealth compartment is spacious enough to accommodate most designs, including larger 1.5g and 2g capacity cartridges.
Where can I buy the Nugz Ninja Incognito?
You've come to the right place! The Nugz Ninja Incognito is available for purchase directly from our store, Smoke & Vape Online Smoke Shop, here.
My device seems broken. Is there a warranty?
We're sorry to hear you're having trouble. At Smoke & Vape, your satisfaction is our priority, which is why we provide a 30-day warranty on this device. If it's not working correctly, please reach out to us within 30 days, and we'll be happy to help you with an exchange or return.
Why does my vape taste burnt?
A burnt taste is almost always caused by the voltage being set too high for the oil in your cartridge, which scorches the oil and the wick. Immediately lower your voltage setting. See the troubleshooting table above for the full fix.
How long does the battery last?
The battery life will vary significantly based on your usage habits, the voltage setting you prefer, and the length of your inhalations. For a typical user, a full charge should last anywhere from one to several days. Using lower voltage settings and turning the device off between sessions will maximize the time between charges.
Are there other concealed 510 batteries like this?
Yes, the Incognito is our favorite stealth option, but if you want to compare it against other discreet and unusual designs, check out our roundup of the 10 Best Funny 510 Thread Batteries, or browse the full 510 thread battery collection.
